Who it’s forFor utility, firefighting, search and building-inspection teams flying M200-series or Matrice 600 Pro aircraft who need heat and visible imagery from one flight.

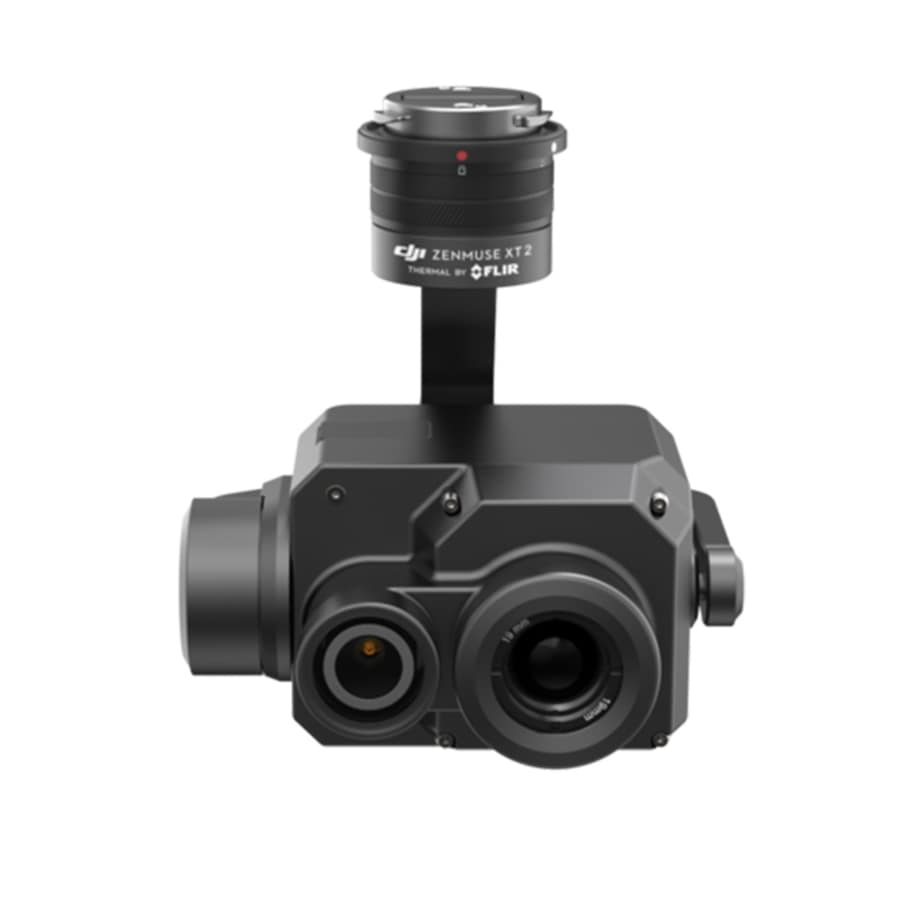

Dual-sensor drone payload pairing a 640x512 or 336x256 thermal camera with a 12 MP 4K visual camera, recording both together on one gimbal.
| Sensor / output | Dual sensor - thermal: uncooled VOx microbolometer, 640x512 or 336x256, 17 um pixel pitch, 7.5-13.5 um spectral band, 30 Hz full frame rate (<9 Hz exportable), sensitivity (NETD) <50 mK @ f/1.0; visual: 1/1.7" CMOS, 12 MP effective pixels, prime lens focused at 8 mm |
|---|---|
| Compatible aircraft | DJI states the XT2 can be mounted onto any M200 Series and M200 Series V2 drone as well as the Matrice 600 Pro; on the Matrice 600 Pro it lacks Heat Track and Quick Track |
