Catalogue / DJI/DJI Enterprise
Product

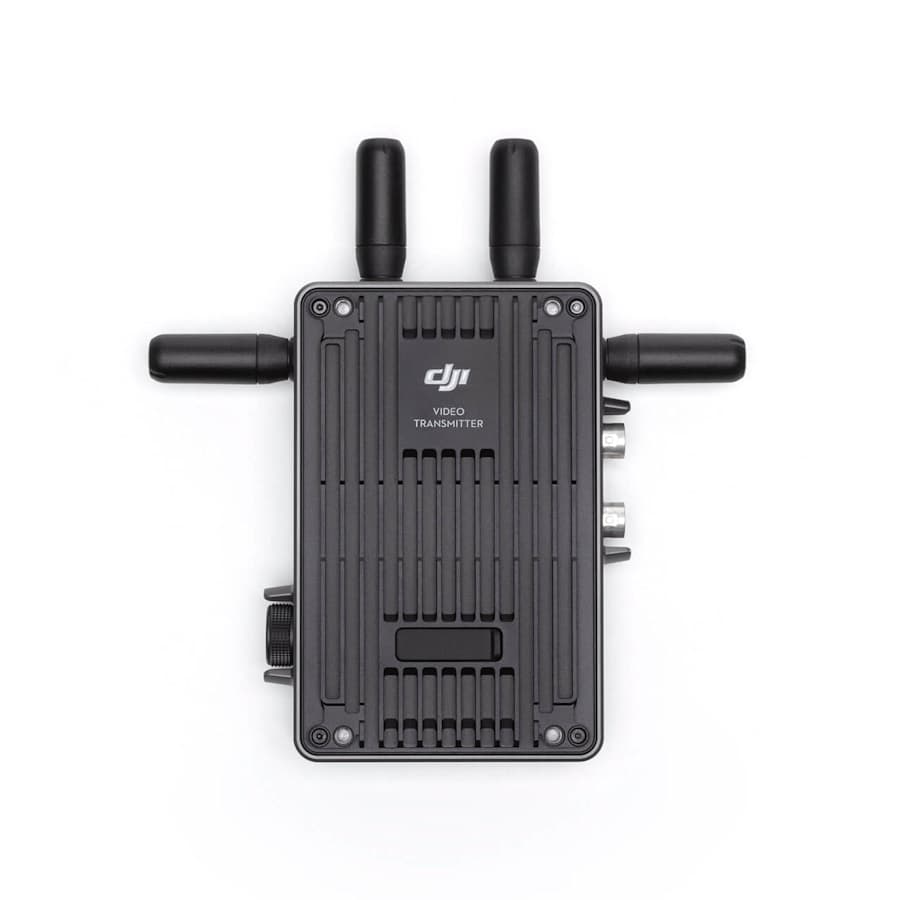

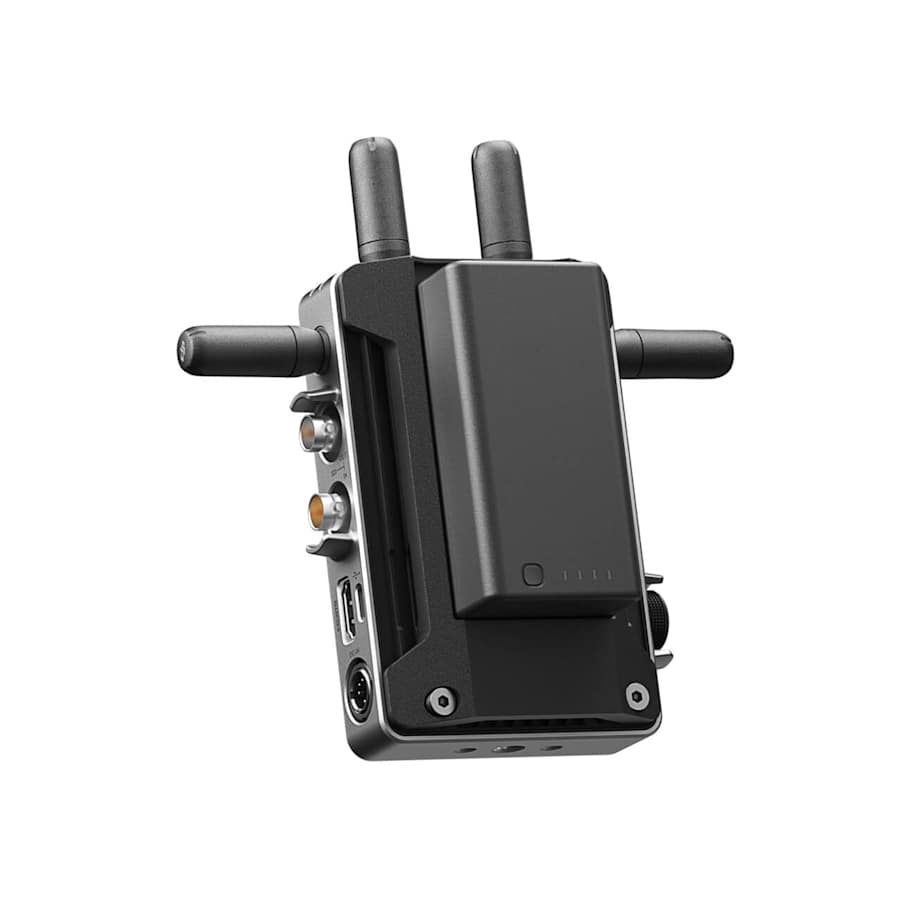

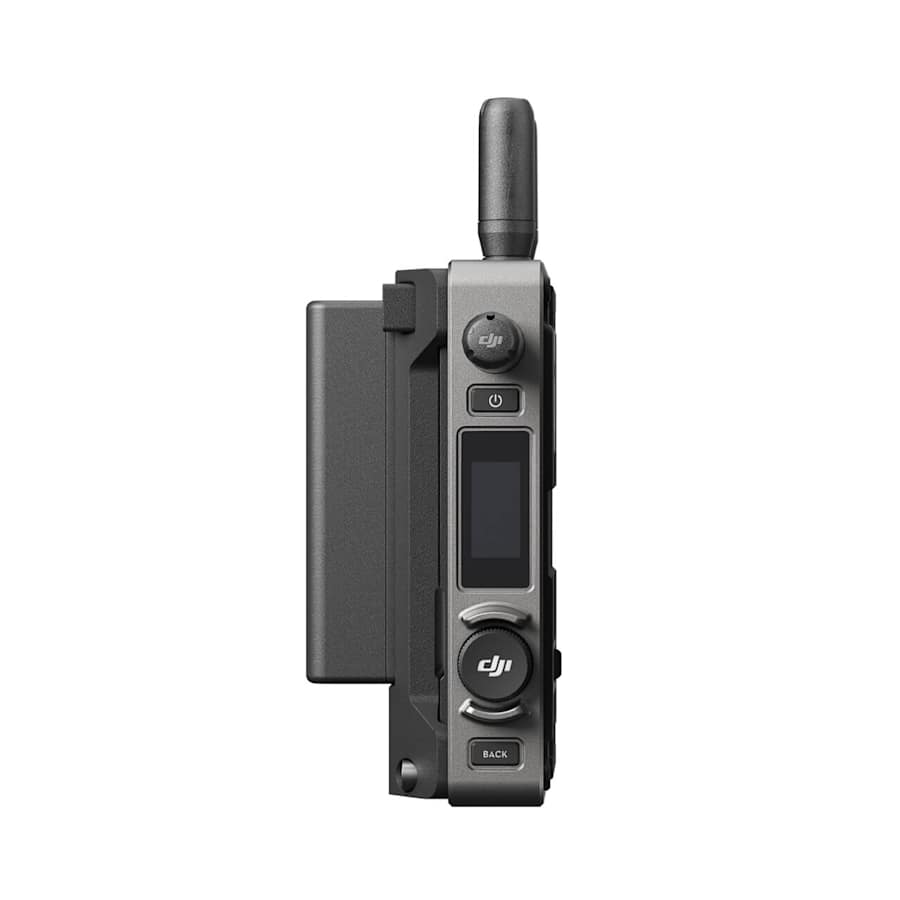

Video Transmitter
Who It’s ForCamera crews and broadcast operators who need directors, focus pullers and clients watching the same live feed without running cable across set.
Wireless video transmitter for cinema cameras, sending 1080p/60fps over SDI or HDMI to monitors up to 4 km away under CE.
€1,099.00incl. VAT
In stock
Today’s midday cut-off has passed. We aim to deliver on the next day we deliver.
Authorised DJI distributor · DJI specialists since 2013 · full support and servicing for DJI products
Specifications
| Power | Power consumption 11 W; power supply voltage 6 to 18 V; power output port 6 to 18 V; operating time 3 hours 40 minutes with a fully charged WB37 Intelligent Battery |
|---|---|
| Range | Max transmission distance 6 km (FCC), 4 km (CE/SRRC/MIC), measured in open environments without obstructions or interference |
| Weight | Approx. 350 g (excluding antennas) |
| Data format | Video coding H.264; input audio SDI embedded, HDMI embedded; output audio PCM |
| Sensor / output | O3 Pro video transmission system, H.264, max bandwidth 40 MHz, max bitrate 40 Mbps, latency 70 ms. Input 1080p 23.98/24/25/29.97/30/50/59.94/60fps, 720p 50/59.94/60fps over SDI or HDMI |
| Compatible aircraft | Not an aircraft payload. DJI pairs the DJI Video Transmitter with the DJI High-Bright Remote Monitor or the DJI Video Receiver; mirror control mode supports ZV1/A7 III/A7S III/A7M III/A7R III/A7R IV/A7 IV/FX3/A7S II/A6600/A6400 and all Sony cameras that support BRAVIA (HDMI control) |
| Operating temperature | -10° to 45° C (14° to 113° F) |
