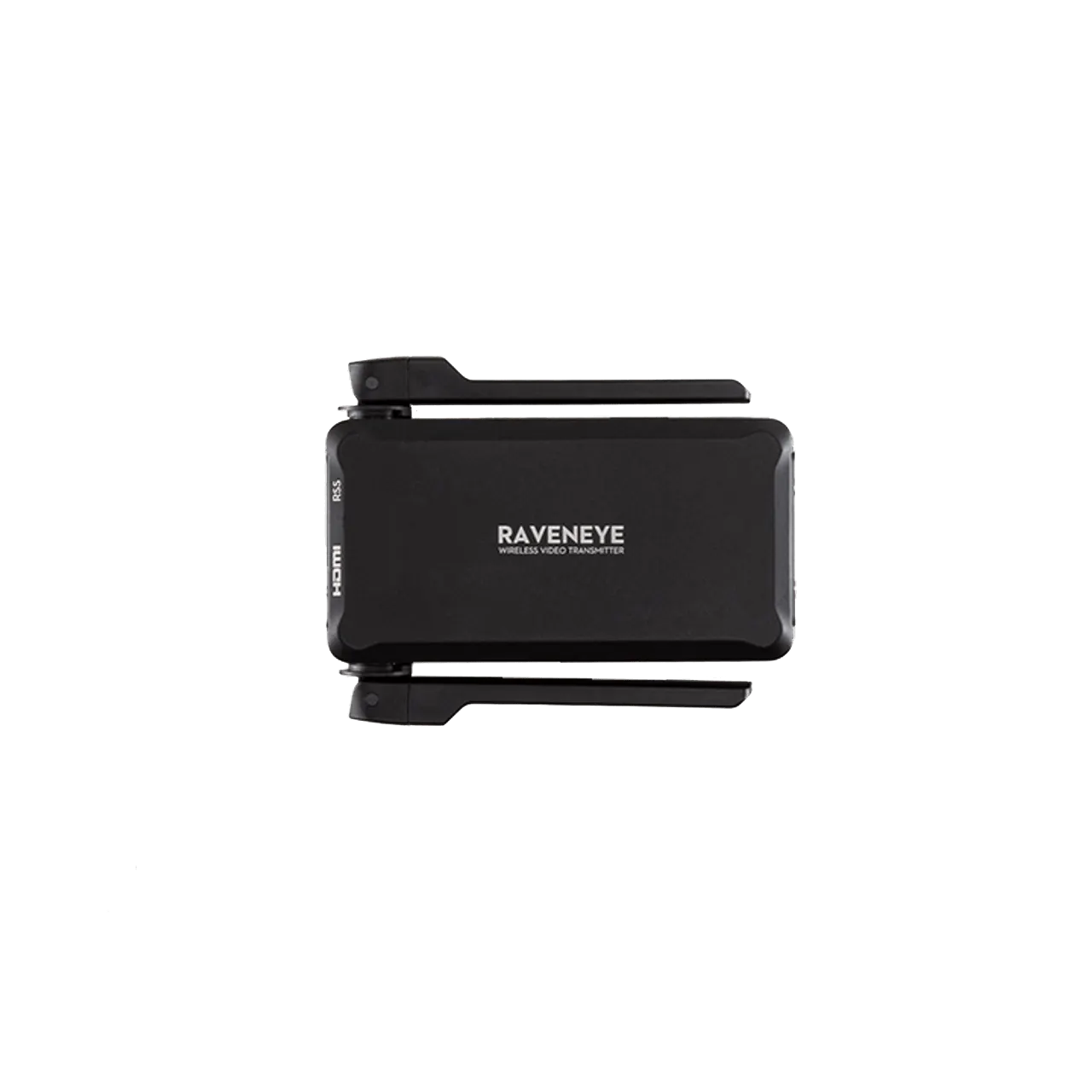

Ronin RavenEye Image Transmission System
Who It’s ForSolo shooters and small crews on RS 2 or RSC 2 who need to monitor and pull focus from the phone while the gimbal tracks a subject.
Wireless HDMI transmitter for RS-series gimbals that sends a live camera view to your phone and enables ActiveTrack 3.0.
€159.00incl. VAT
Out of stockAsk us. We can usually get it.
Authorised DJI distributor · DJI specialists since 2013 · full support and servicing for DJI products
Specifications
| Weight | 126 g |
|---|---|
| Charging | Approx. 2.5 hours. Compatible charger 5 V/2 A |
| Mounting | Cold shoe, with a cold shoe to 1/4"-20 adapter supplied. Ports: power/communication (USB-C), mini HDMI, RSS camera control (USB-C), expansion port. Supplied with mini-HDMI to HDMI, mini-HDMI to mini-HDMI and mini-HDMI to micro-HDMI cables, two M4 screws and a 3 mm Allen wrench |
| Battery life | Max battery life approx. 3.5 hours. Battery capacity 2970 mAh |
| Compatibility | DJI RS 4 Pro, DJI RS 4, DJI RS 3 Pro, DJI RS 3, DJI RS 2 and DJI RSC 2. Live camera view appears on the gimbal's own built-in screen only with the RS 4 Pro, RS 2 and RS 3 Pro; with the RS 4, RS 3 and RSC 2 the view is available in the Ronin app only. Transmission range 200 m (SRRC/FCC) but 100 m (CE) — CE is the figure that applies in Malta — and both are quoted for open environments free of obstructions or interference. Latency 60 ms. Dimensions 82×63×24 mm. Operating temperature 0° to 45° C. Camera support is listed on DJI's Ronin Series Compatibility Search |
| Special feature | Live camera view on the phone over Wi-Fi, which is what enables ActiveTrack 3.0, Force Mobile, virtual-joystick gimbal control, manual focus and camera exposure adjustment from the Ronin app |
