Who it’s forFor solo filmmakers and wedding shooters working on manual cine or stills glass who need repeatable focus pulls without a second person on the rig.

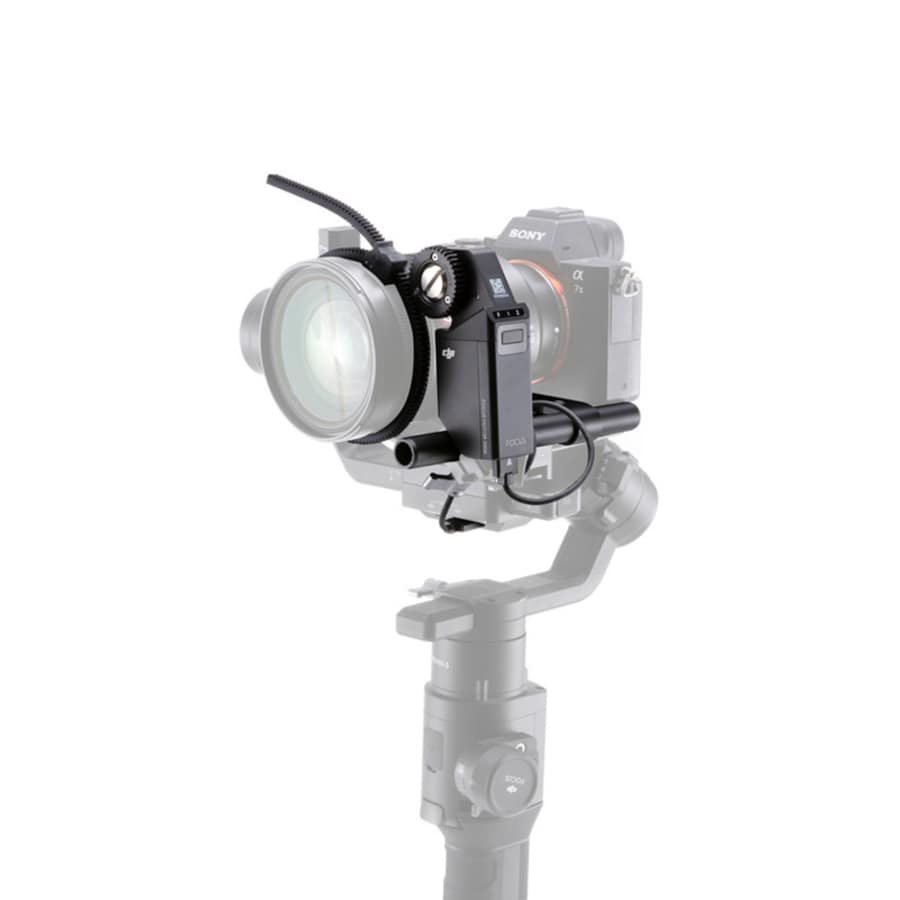

Motorised follow focus for the Ronin-S that turns a manual lens's focus ring, so pulls are made from the gimbal rather than by hand.
| Weight | 198 g (power cable included) |
|---|---|
| Charging | No battery. Operating voltage 6-17 V; free current 25 mA at 12 V, stall current 0.5 A at 12 V |
| Mounting | 15 mm rod clamp (inner diameter 15 mm), supplied with a rod mount, two 15 mm rods, four screws, two focus gear strips and a power cable |
| Compatibility | Ronin-S, as DJI lists it — DJI does not list the Ronin-SC or any RS-series gimbal for this motor. Motor: max torque 0.5 Nm, max speed 210 RPM, noise 25 dB, dimensions 110×53×30 mm, gear 40 teeth module 0.8, operating temperature -20 to 55° C. Lens gear: 151 teeth, module 0.8, diameter 30 to 110 mm, length 377 mm |
| Special feature | Motorised focus, iris or zoom control. DJI's own wording is that it is used with the Ronin-S Focus Wheel — the wheel is the control, the motor is the actuator |
