Who it’s forFor contractors and agencies running continuous subsea operations from a quay or vessel, where long inspections or a rescue standby cannot be broken by battery changes.

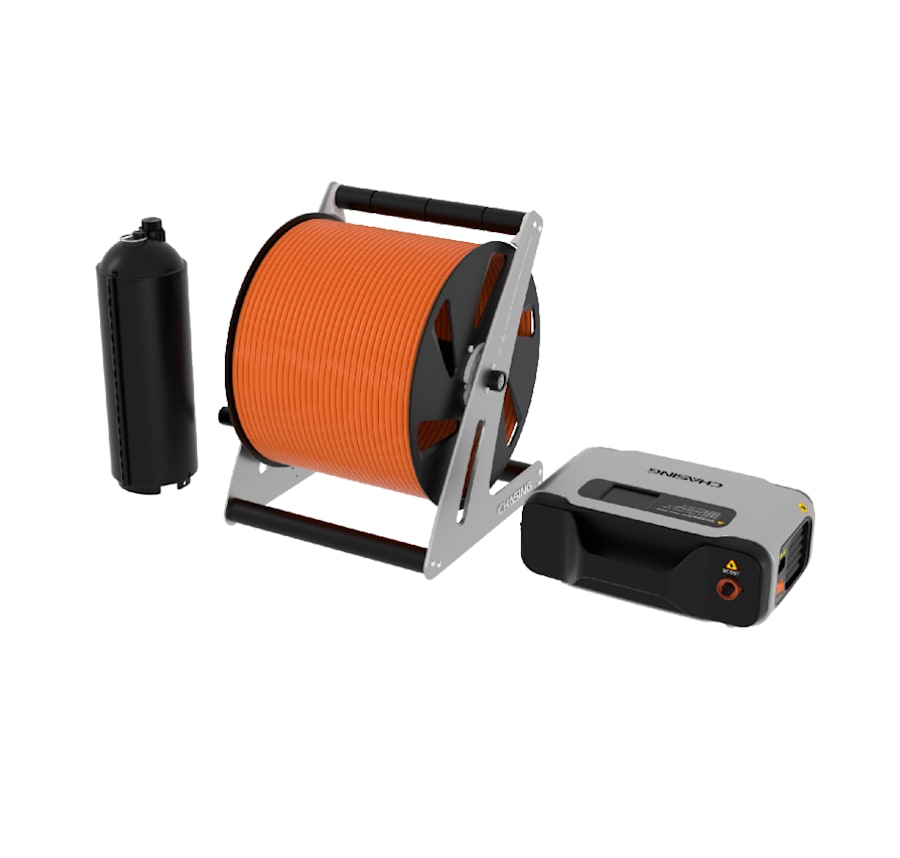

Shore-fed AC power system with a 200 m tether, letting the ROV work through the day without stopping to swap batteries.
| Range | HV tether cable length 100 m / 200 m (determine according to actual specification); cable diameter 7.2 mm, tensile capacity 250 kgf, 35 g/m, +5 - 10 g buoyancy in fresh water, wire gauge 27 awg (yellow and white) / 20 awg (red and black) |
|---|---|
| Sensor / output | Shore-based AC power supply system (C-SPSS) comprising a shore-based unit, high-voltage reel and ROV-based unit; power supply box carries a 2.8 inch 320x240 resistive touch screen and a 10/100 Mbps network port; leakage, overcurrent, undervoltage, overvoltage, short circuit and high temperature protection |
| Compatible aircraft | Chasing's product page for the Shorebase Power Supply System 200M does not name the compatible ROV models. |
| Brand | ChasingManufacturer & safety information |
|---|
