Catalogue / DJI/DJI Enterprise/Matrice 4 Series
Product
Who it’s forOperators running docked or remote drone sites who need reliable coverage across a spread-out area, such as ports, quarries or power networks.

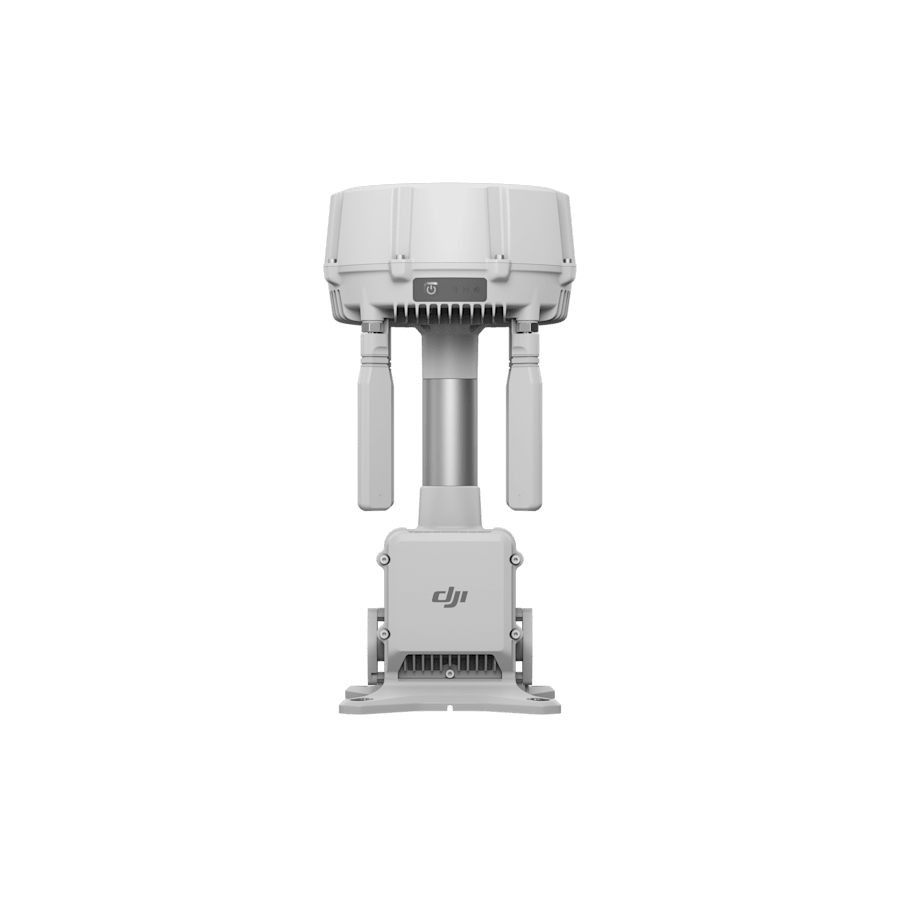

Fixed transmission base station that extends OcuSync 4 coverage, working either as a FlightHub 2 gateway or as an offline relay.
| Range | Up to 40 km unobstructed and free of interference (30/25/18 km by region). With strong interference in dense buildings or residential areas, approx. 1.8–6 km; obstructed by buildings, approx. 0–0.5 km |
|---|---|
| Sensor / output | DJI O4 Enterprise Enhanced Video Transmission System with OcuSync 4 Pro antennas (4 external directional, 8 internal directional); GNSS receiver covering GPS L1C/A, L2C, L5; BDS B1I, B2I, B3I, B1C, B2a, B2b; Galileo E1, E5a, E5b, E6; GLONASS L1, L2; QZSS L1C/A, L2C, L5; L-Band. Supports up to 4 simultaneous 1080p H.264 video streams |
| Compatible aircraft | DJI Matrice 400 (supported in Relay Mode only); Matrice 4D/4TD with Dock 3 in Gateway Mode; Matrice 4E, Matrice 4T and Matrice 4D/4TD (with Dock 3, or with Dock 3 and DJI RC Plus 2 Enterprise) in Relay Mode |
